包装机
用拉伸膜保护包装, 使其防水、防潮、防尘。

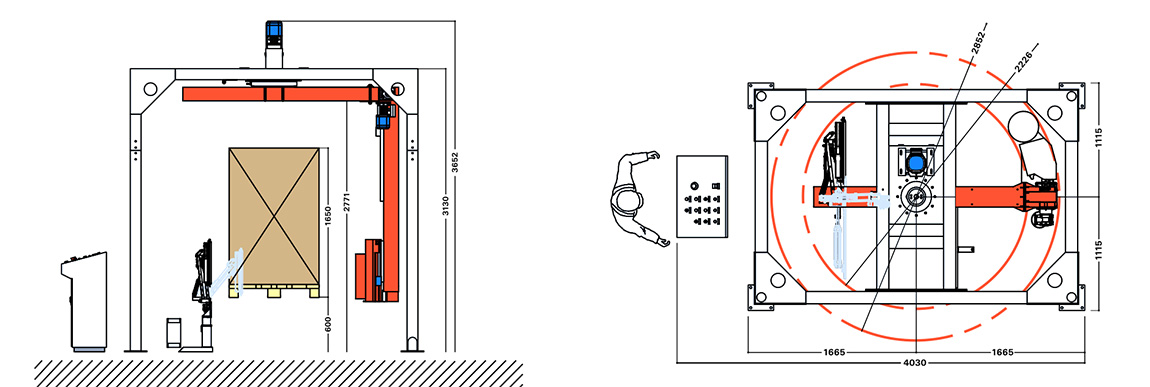

该自动包装机的旋转臂, LT300, 配备可扩展的聚乙烯夹具, 切割和焊接单元。
变频器对膜架的升降速度、臂的转动、加速度和减速比进行了控制。
安全围栏连接门上的限位开关。
Wrapping machines
protect the package with stretch film and make it water proof, damp proof and dust proof.

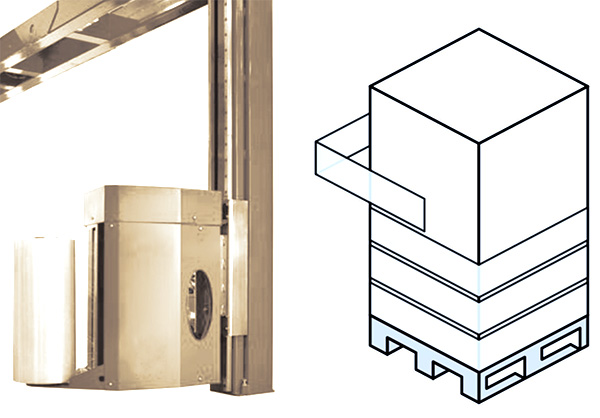

The automatic wrapping machine with rotating arm, LT300, is equipped with extensible polyethylene gripper, cutting and welding units.
The speed of ascent and descent of the reel holder, the rotation of the arm, the accelerations and decelerations are managed by inverter.
Full of safety fences with interconnected access doors and limit switch.
这是一个自动包装机与旋转臂设计, 以确保整体灵活性的包装。
It’s an automatic wrapping machine with rotating arm designed to ensure total flexibility of the packaging.
描述：
·PLC可编程控制；
·独立电控柜，报警灯，并带声音、安装在电控柜上。
·触摸屏操作，缠绕层数及次数可设置；
·光电开关，自动感测货物的高度；
·回转支承驱动，定位精确；
·数字化参数设置：悬臂转速，膜架升降速度，膜架出膜速度。
·机器设有自动，手动，旁置转换功能，更好的保证了包装系统的运行。
·工件周边需装纸护角4个，且垂直安装；
·放置纸护角时，与人造板棱线相邻的两个面靠齐，没有歪斜现场；
·护角规格为150mm*150mm*5mm，放置纸护角时以底面为基准；
Description：
·Plc programmable control.
·Independent electric control cabinets, alarm lights, and with sound, installed in the electric control cabinet.
·Touch screen operation, winding layer number and number can be set.
·Photoelectric switch, from the dynamic measurement of the height of goods.
·Slewing support drive, accurate positioning.
·Digital parameter setting: Cantilever speed, film frame lifting speed, film frame film speed.
·The machine is equipped with automatic, manual, side-shift function, better guarantee the operation of the packaging system.
·The workpiece around the need to install paper corner 4, and vertical installation.
·When the paper to protect the angle, and wood-based panel edge adjacent to the two sides of the line, no skew site.
·The protection angle specification is 150mm*150mm*5mm, puts the paper guard angle to the bottom surface as the datum.
